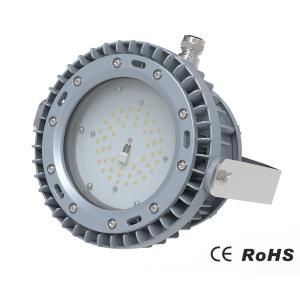

Sealion Series 30W 45W 60W 80W Industrial LED Flood Light Power Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 10%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 60598-1:2015+A1:2018 | EN 60598-2-5:2015 | EN 62031:2008+A1:2013+A2:2015 |
| EN 62471:2008 | EN 62493:2015 | IEC 62321-4:2017 |
| IEC 62321-5:2013 | IEC 62321-6:2015 | IEC 62321-7-1:2015 |
| IEC 62321-7-2:2017 | IEC 62321-8:2017 | |
Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V
Power:30W,45W,60W,80W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.5Kg
Size:φ 275*195mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2X M25*1.5 (M20*1.5,NPT 3/4” are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:

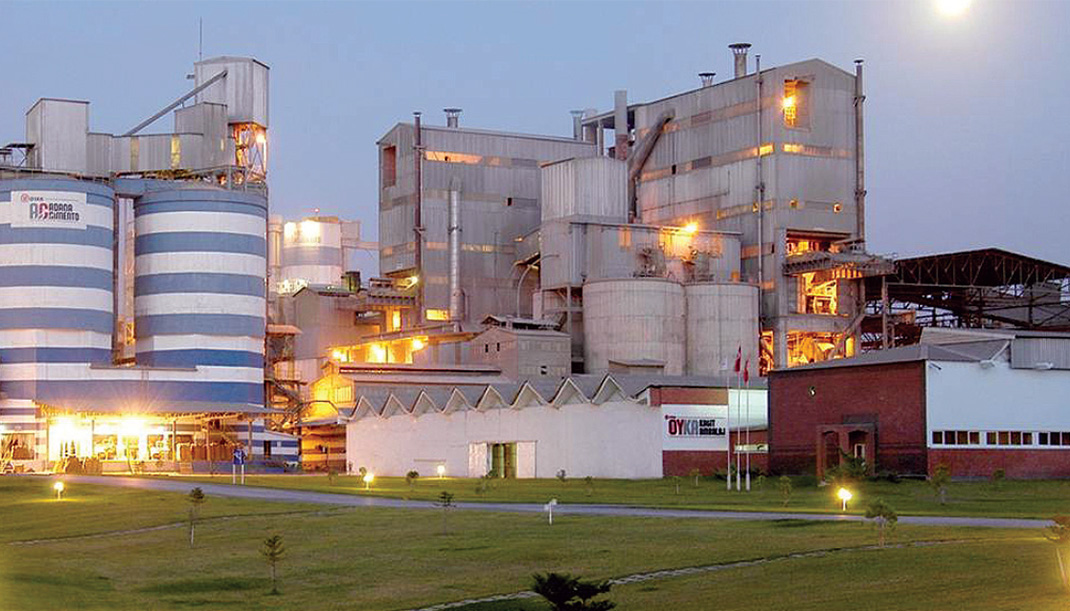

1,Cement plants
2,Warehouse
3,Factory
4,Power Genera
5,Power Transmission
6,Shipping industry
Ordering Information:
| P/N | Rated voltage(V) | Lumino us Flux(lm) | Power | CRI | Color temp. | CCT(K) |
| KSL30*WM-J-E | 100~277 (141~392) | 3900 | 30 | 70 | Warm white | 3000±300 |
| KSL30*NH-J-E | 4410 | 30 | 70 | Natural white | 4000±300 |
| KSL30*NH-J-E | 4410 | 30 | 70 | Natural white | 5000±300 |
| KSL30*CH-J-E | 4410 | 30 | 70 | Cool white | 5700±300 |
| KSL45*WM-J-E | 5850 | 45 | 70 | Warm white | 3000±300 |
| KSL45*NH-J-E | 6615 | 45 | 70 | Natural white | 4000±300 |
| KSL45*NH-J-E | 6615 | 45 | 70 | Natural white | 5000±300 |
| KSL45*CH-J-E | 6615 | 45 | 70 | Cool white | 5700±300 |
| KSL60*WM-J-E | 7800 | 60 | 70 | Warm white | 3000±300 |
| KSL60*NH-J-E | 8820 | 60 | 70 | Natural white | 4000±300 |
| KSL60*NH-J-E | 8820 | 60 | 70 | Natural white | 5000±300 |
| KSL60*CH-J-E | 8820 | 60 | 70 | Cool white | 5700±300 |
| KSL80*WM-J-E | 10400 | 80 | 70 | Warm white | 3000±300 |
| KSL80*NH-J-E | 11760 | 80 | 70 | Natural white | 4000±300 |
| KSL80*NH-J-E | 11760 | 80 | 70 | Natural white | 5000±300 |
| KSL80*CH-J-E | 11760 | 80 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for beam angle , including H4V4 / H5V5 / H6V6 .
2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less;
Candela Distribution:
Installation Method:
